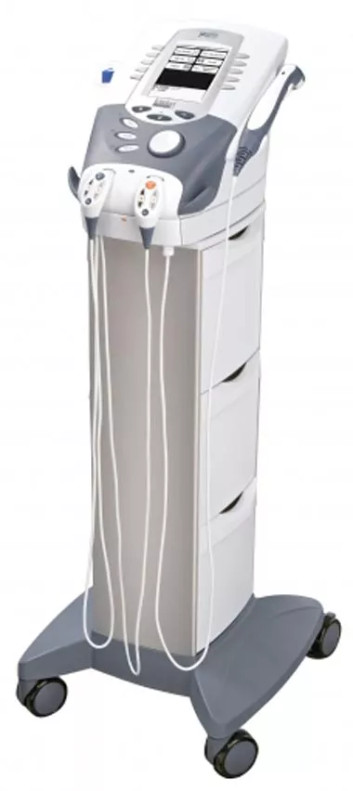

Everfit Healthcare presents the Intelect Legend XT.
The Intelect Legend is an advanced therapy system offering the latest in technology. Featuring a sophisticated ergonomic design which is user friendly. The Intelect Legend XT is enables the professional to utilise a comprehensive range of therapies in this single verisitle unit.
Product details:
- Easy-to-add modularity allows the addition of two additional channels of electrotherapy or a battery module
- High contrast 5 (13 cm) FSTN LCD monochromatic user interface
- Two independent electrotherapy channels, expandable to four independent channels
- Multiple waveform electrotherapy-six clinical waveforms: Interferential, Premodulated, High Volt, Russian, Symmetrical Biphasic and Microcurrent
- Patented award-winning, ergonomic modular design
- Documentation of treatment data with Patient Data Cards
- User defined protocols for your specific needs
- Dual frequency ultrasound at 1 or 3.3 MHz
- Pulsed or Continuous Duty Cycles (10%, 20%, 50% & 100%)
- Four ergonomically designed soundhead applicator sizes: 1 cm², 2 cm², 5 cm² & 10 cm²
- Therapy System Cart maximizes storage of clinical supplies and organizes cables
- Optional Operator Remotes allow treatment stop, start and pause, as well as change in amplitude at any time during a treatment session. Each remote is color-coded for designation between channels
- Watertight soundheads for use in underwater therapy
Intelect XT Options:
| Options |
|---|
| 2-Channel Electrotherapy |
| 2-Channel Electrotherapy with Cart |
| 2-Channel Combo |
| 2-Channel Combo with Cart |
| 4-Channel Electrotherapy |
| 4-Channel Electrotherapy with Cart |
| 4-Channel Combo |
| 4-Channel Combo with Cart |
Accessories Included:
| Description | Quantity |
|---|---|
| Patient Data Card | 1 PK |
| 5 cm² Sound Head Applicator | 1 PK |
| Electrotherapy Leadwire Channel 1 | 1 PK |
| Electrotherapy Leadwire Channel 2 | 1 PK |
| Electrotherapy Leadwire Channel 3 | 1 PK |
| Electrotherapy Leadwire Channel 4 | 1 PK |
Optional Accessories:
| Description | Quantity | Size |
|---|---|---|
| Channel 3 & 4 Electrotherapy Module | 1 PK | Universal |
| Therapy Cart (assembled) | 1 PK | Universal |
| Battery Module (Self-contained Nickel Metal Hydride battery automatically & continually charges when unit is plugged into mains power supply.) Can only be used with the 2 channel unit. |
1 PK | Universal |
| Patient Interrupt Switch Channels 1 & 2 | 1 PK | Universal |
| Patient Interrupt Switch Channels 3 & 4 | 1 PK | Universal |
| Black Rubber Carbon Electrodes, 3″ (8 cm) | 2 PK | Universal |
| Red Rubber Carbon Electrodes, 3″ (8 cm) | 2 PK | Universal |
| Nylatex™ Wrap, 2.5″ x 24″ | 2 PK | Universal |
| Patient Data Cards | 25 PK | Universal |
| Operator Remote Channels 1 & 2 | 1 PK | Universal |
| Operator Remote Channels 3 & 4 | 1 PK | Universal |
| 1 cm² Sound Head Applicator | 1 PK | Universal |
| 2 cm² Sound Head Applicator | 1 PK | Universal |
| 10 cm² Sound Head Applicator | 1 PK | Universal |
| Carry Bag | 1 PK | Large |
Technical Specifications:
| Specification | Description |
|---|---|
| Mains Power: | 100-240 VAC~50/60 Hz, 1.0 A |
| Weight: | 7 lb (3.2 kg) |
| Shipping Weight: | 16 lb (7.3 kg) |
| Dimensions: | 12.75″L x 11.4″W x 8.75″H (32.4 cm x 28.9 cm x 22.2 cm) |
| Electrical Safety Class: | Class 1, Electrotherapy Type BF, Ultrasound Type B |
| Safety Tests: | UL/IEC/EN 60601-1, IEC/EN 60601-1-2, IEC 60601-2-5, IEC 60601-2-10 |
